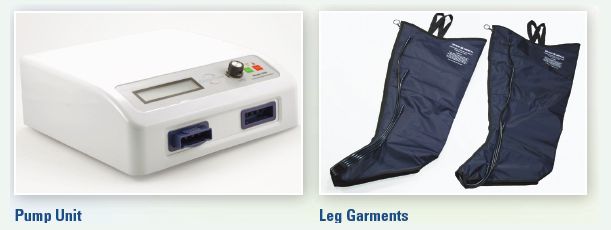

CircuFlow Model 5200 Intermittent
Pneumatic Compression (IPC) Pump

The CircuFlow Intermittent Pneumatic Compression (IPC) Pump Model 5200 allows patients the freedom to treat chronic venous and lymphatic disorders in the comfort of their own homes. Using intermittent gradient sequential pressure applied through multi-chambered garments, the CircuFlow 5200 increases blood flow and provides extracellular fluid clearances.

The device’s 4”x1” digital LCD screen provides easy access to essential set-up information and real-time pressure readings. The CircuFlow 5200 can also operate in two modes:

  • A gradient mode in which a maximum pressure and pressure gradient are administered, and . . .

  • pressure mode in which each chamber’s pressure can be set individually.

KEY FEATURES:

  • Adjustable inflation cycle, proximal to distal; 20 – 80 seconds
  • Dual operation modes: gradient mode or pressure mode
  • Customizable pressure from 25 to 120 mmHg
  • Smart pressure monitoring preventing pressure tunneling due to operator setup error
  • Ability to adjust or skip individual chamber pressures
  • Automatic vacuum that drains the air from the garments for fast and easy removal after therapy

SPECIFICATIONS:

  • Dimension: 11.5” W X 10” D X 4” H
  • Weight: 12 lbs
  • Inflation Cycle: Adjustable 5-20 seconds per chamber
  • Deflation Cycle: 12 seconds
  • Cycle Time: Adjustable 20-80 seconds
  • Therapy Time: 30, 60 or 90 minutes or continuous
  • Electrical: 120VAC, 60Hz, 100 VA maximum
  • Fuse Rated: 250VAC, 1.0 AMP, SLO-BLO
  • Applied Part: Type B
  • Protection Against Electrical Shock: Class 1
  • Operation Mode: Continuous operation with intermittent loadingl
